- Size: 12500*7800*3280mm
- Place of Origin: China
- Brand Name: CHTC JOVE
- Model Number: JVY500A
- Weight: 502000.000 kg
JVY series hydraulic static pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, no vibration, and fast pile driving, high quality pile. It is represent the future development tendency of pilling machinery. JVY series hydraulic static pile driver has more than 10 varieties, the pressure capacity from 60 tons to 1200 tons. We provide the best service and personalized design with the concept "All for the customers"
Unique clamping mechanism design
Unique design of side/corner piling structure
.Unique clamping pressure-keeping system
Unique final pressure regulator system
Unique walking mechanisim with lubrication cup design
Constant & high flow power hydraulic system design
Model
JVY500A
Max.piling pressure(tf)
500
Max.piling speed(m/min)
Max
6.2
Min
1.1
Piling stroke(m)
1.8
Move stroke(m)
Longitudinal Pace
3.6
Horizontal Pace
0.6
Slewing angle(°)
10
Rise stroke(mm)
1000
Pile type(mm)
Square pile
F300-F600
Round pile
Φ300-Φ600
Min.Side Pile Distance(mm)
1400
Min.Corner Pile Distance(mm)
1635
Crane
Max.hoist weight
12
Max.pile length
14
Power(kw)
Main engine
111
Crane engine
30

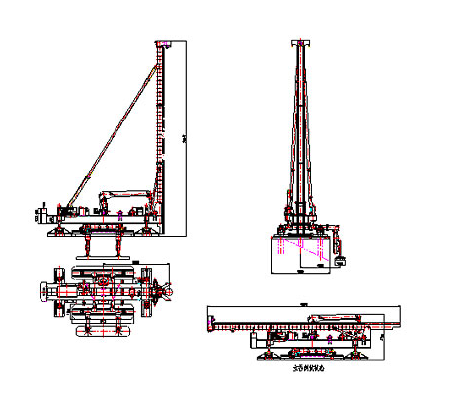

Overall dimension(mm)
Work length
12500
work width
7800
Transportation height
3280
Total weight(t)
Total weight
502
