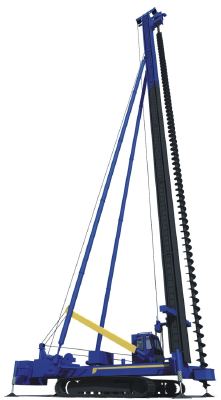

Product Details
- Size: 12.5*6.0*38.08m
- Place of Origin: China
- Brand Name: CHTC JOVE
- Model Number: JZL90
- Weight: 64000.000 kg
- :
| Model | JZL90 | |
|---|---|---|
| Drilling diameter | 600mm | |
| Max. drilling depth | 31m | |
| Power head | Type | ZZSH480-60 |
| Power | 2×55Kw | |
| Output speed | 16r/min | |
| Max.output torque | 55KN·m | |
| Pile frame | Type | Crawler-type three-point support |
| Walking speed | 0.067m/s | |
| Rotation angle | Full slewing | |
| Slewing speed | 0.31r/min | |
| Ground pressure | 0.085MPa | |
| Overall dimension | (12.5×6.0×38.08)m | |
| Main hoister Type | Type | JK8 |
| Load of single line | 80KN | |
| Rope speed | 22.5m/min | |
| Max.pull force | 640KN | |
| Auxiliary hoister | Type | JK2.5 |
| Load of single line | 25KN | |
| Rope speed | 18m/min | |
| Oil pump | Type | CBF-E50 |
| System pressure | 16MPa | |
| Total weight | 64T | |
Note:The max driling depth of JZB90 and JZL90 will be 20m when their driling diameters are 800mm;
The max driling depth of JZL120 will be 25m when its driling diameter is 800mm.
