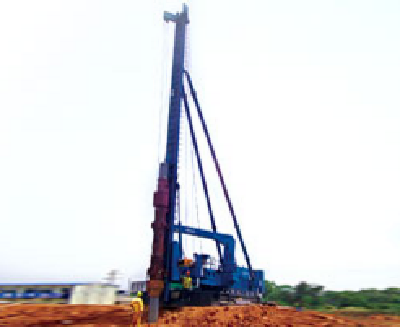

JVHZ62
A new generation of large pile driver
Piling for slope, water surface, swamp, silt, uneven and complex working face
Strong driving force
Simple type diesel hammer or hydraulic hammer
Main features of products:
1, the original patent products: Patent No. 201120341460.2 201110269494.X;
2, used for the slope, water, marsh, silt, uneven and complex working face pile driving large pile machine;
3, the working device using a drum type diesel hammer or hydraulic hammer, strong power;
4, full hydraulic drive, flexible action, easy to operate;
5, engine, hydraulic parts and other key parts of the international brand-name products, high configuration, long life, reliable quality;
Many levee engineering facing in soft soil foundation treatment difficult problem, the prefabricated pile with high strength, standardized production, quality reliable, into a pile of good quality characteristics, in embankment engineering in soft soil foundation treatment with precast pile anti slide pile and obvious comprehensive benefit; due to the embankment slope surface is inclined, common precast pile construction machinery because of the large volume, bulky, face need a wide, difficulty in embankment construction, thus limiting the precast pipe pile application in embankment engineering of soft soil foundation treatment. Self supporting piling machine, which can overcome the existing prefabricated pile piling machine has the defects, can use its dozen engineering pile support point, then in pile spread plate as piling machine walking platform, to solve the problems in the construction of embankment slope.
The basic components of JVHZ62 self supporting pile driver
Chassis: walking type walking chassis (including shogging mechanism, a longitudinal movement mechanism, in line with the characteristics of the machine on the embankment slope from construction work platform. The shogging mechanism with arc, increase chassis grounding area maximum;
Column: the cylinder from the frame column, landing gear convenient and quick. Large triangular diagonal support structure, the work is more stable, more reliable;
Body platform: long fuselage platform structure, body slightly to the side can be adjusted pile position and a seat not Yiji can meet three pile construction requirements, so that the machine in the self built platform construction safer and more convenient.
