Product Details
- Size: 9613*2944*2990mm
- Place of Origin: China
- Brand Name: CHTC JOVE

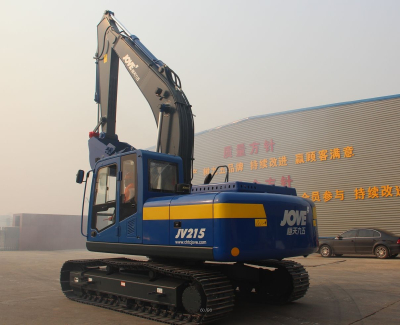

- Model Number: JV215
- Weight: 20850.000 kg
| Model | JV215 |
| Total weight | 20850 Kg |
| Bucket capacity | 0.91 m³ |
| Engine Type | Cummins 6BTA5.9-C |
| Hydraulic Flow Rate | 220×2 L/min |
| Grade Climbing Capacity | 35°(70%) |
| Ground Pressure | 45 Kpa |
| Travelling Speed (high / low) | 5.7/3.7 km/h |
| Slewing Speed | 11 rpm |
| Bucket Digging Force | 145 kN |
| Length (transportation) | 9613 |
| Height (transportation) | 2944 |
| Width (transportation) | 2990 |
| Minimum ground clearance | 467 |
| Rear swing radius | 2810 |
| Track ground length | 3558 |
| Track total length | 2846 |
| Track gauge | 4340 |
| Track pad width | 600 |
| Upper width | 2800 |
| Maximum digging radius | 9914 |
| Maximum digging depth | 6827 |
| Maximum digging height | 9927 |
| Maximum unloading height | 6675 |
| Front minimum swing radius | 3531 |
