Product Details
- Size: 9160*3070*2990mm
- Place of Origin: China
- Brand Name: CHTC JOVE
- Model Number: JV235
- Weight: 23200.000 kg

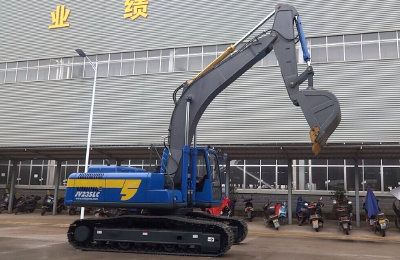

| Model | JV235LCCrawler Hydraulic Excavator(Cummins) |
|---|---|
| Engine Model | 133kw / 2000rpm ( Cummins 6B5.9-C ) |
| Operation weight | 23200kg |
| Standerd bucket capacity | 1.2m ³ |
| Hydraulic Flow Rate | 2×220+31.5L / min |
| Grade Climbing Capacity | 70% (35°) |
| Ground Pressure | 48kPa |
| Travelling Speed | 3.6 / 5.9 km/h |
| Slewing Speed | 12rpm |
| Bucket Digging Force | 165kN |
| Dimension (mm) | |
| Length (transportation) | 9160 |
| Height (transportation) | 3070 |
| Width (transportation) | 2990 |
| Minimum ground clearance | 490 |
| Rear swing radius | 2830 |
| Track ground length | 3660 |
| Track total length | 4450 |
| Track gauge | 2392 |
| Track pad width | 600 |
| Upper width | 2800 |
| Working dimension (mm) | |
| Maximum digging radius | 8563 |
| Maximum digging depth | 5442 |
| Maximum digging height | 8756 |
| Maximum unloading height | 5967 |
| Front minimum swing radius | 2840 |
- Size: 9160*3070*2990mm
- Place of Origin: China
- Brand Name: CHTC JOVE
- Model Number: JV235
- Weight: 23200.000 kg
