- Size: 13700*3000*3281
- Place of Origin: CHINA
- Brand Name: CHTC JOVE
- Model Number: JVR 160Z
- Weight: 45000.000 kg
Technical Specification:
Max. output torque(KN.m) | 160 |
Max. drilling depth(m) | 55 |
Max. drilling diameter(mm) | 1500 |
Engine brand | Cummins |
Engine model | CumminsQSB 6.7-C220 |
Engine power(KW) | 164 |
undercarriage model | JVR160Z Self-made undercarriage |
Traction force(KN) | 345 |
Drilling speed(rpm) | 6-38 |
Max. crowd push force(KN) | 150/160 |
Stroke of sledge(mm) | 4300 |
Main winch pull(1st layer) | 164 |
Main winch wire rope dia.(mm) | Φ26 |
Max. main winch line speed(m/min) | 65 |
Aux. winch line pull(1st layer)(KN) | 50 |
Aux. winch wire rope dia.(mm) | Φ18 |
Aux. winch line speed(m/min) | 110 |
Overall width in drilling position(mm) | 4000/19181 |
Overall L/H/W transport position(mm) | 13700/3000/3281 |
Total weight (t) | 45/53 |
- Size: 13700*3000*3281
- Place of Origin: CHINA
- Brand Name: CHTC JOVE
- Model Number: JVR 160Z
- Weight: 45000.000 kg

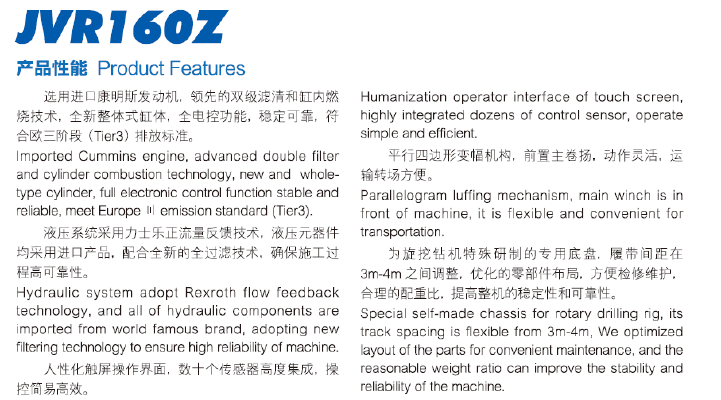

CHTC JOVE JVR series rotary drilling rig have excellent design concept, reliable system, strong power and self-extendable undercarriage which insure operation in complicated jobsites. Heavy hydraulic telescopic crawler is very stable and flexible, especially suitable for narrow jobsites. JVR series rotary drill rig enjoy economic, efficient, environment friendly, stable performance and other features
Max. output torque(KN.m) | 160 |
Max. drilling depth(m) | 55 |
Max. drilling diameter(mm) | 1500 |
Engine brand | Cummins |
Engine model | CumminsQSB 6.7-C220 |
Engine power(KW) | 164 |
undercarriage model | JVR160Z Self-made undercarriage |
Traction force(KN) | 345 |
Drilling speed(rpm) | 6-38 |
Max. crowd push force(KN) | 150/160 |
Stroke of sledge(mm) | 4300 |
Main winch pull(1st layer) | 164 |
Main winch wire rope dia.(mm) | Φ26 |
Max. main winch line speed(m/min) | 65 |
Aux. winch line pull(1st layer)(KN) | 50 |
Aux. winch wire rope dia.(mm) | Φ18 |
Aux. winch line speed(m/min) | 110 |
Overall width in drilling position(mm) | 4000/19181 |
Overall L/H/W transport position(mm) | 13700/3000/3281 |
Total weight (t) | 45/53 |
