perfuratriz/ Rotary Drilling Rig/Pilote/piling machinery/bored pile /JVR200D

perfuratriz/ Rotary Drilling Rig/Pilote/piling machinery/bored pile /JVR200D

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 300 Units per Year
  • Port: shanghai or shenzhen
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2007-02-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  14632*3000*3208
  • Place of Origin:  CHINA
  • Brand Name:  CHTC JOVE
  • Model Number:  JVR 200D
  • Weight: 60000.000 kg





Max. output torque(KN.m)

200

Max. drilling depth(m)

62

Max. drilling diameter(mm)

1800

Engine brand

CAT

Engine model

C-7 EFI

Engine power(KW)

187

undercarriage model

CAT329D

Traction force(KN)

420

Drilling speed(rpm)

6-27

Max. crowd push force(KN)

180/200

Stroke of sledge(mm)

4500

Main winch pull(1st layer)

190

Main winch wire rope dia.(mm)

Φ26

Max. main winch line speed(m/min)

72

Aux. winch line pull(1st layer)(KN)

100

Aux. winch wire rope dia.(mm)

Φ18

Aux. winch line speed(m/min)

62

Overall width in drilling position(mm)

4300/20361

Overall L/H/W transport position(mm)

14559/3000/3507

Total weight (t)

60









  • Size:  14632*3000*3208
  • Place of Origin:  CHINA
  • Brand Name:  CHTC JOVE
  • Model Number:  JVR 200D
  • Weight: 60000.000 kg

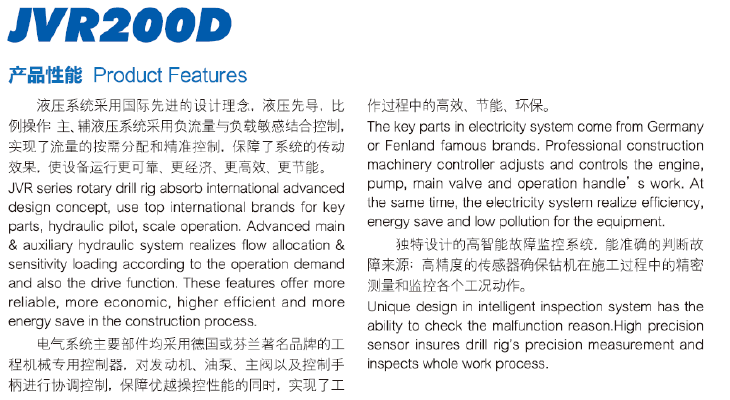

CHTC JOVE JVR series rotary drilling rig have excellent design concept, reliable system, strong power and self-extendable undercarriage which insure operation in complicated jobsites. Heavy hydraulic telescopic crawler is very stable and flexible, especially suitable for narrow jobsites. JVR series rotary drill rig enjoy economic, efficient, environment friendly, stable performance and other features





Max. output torque(KN.m)

200

Max. drilling depth(m)

62

Max. drilling diameter(mm)

1800

Engine brand

CAT

Engine model

C-7 EFI

Engine power(KW)

187

undercarriage model

CAT329D

Traction force(KN)

420

Drilling speed(rpm)

6-27

Max. crowd push force(KN)

180/200

Stroke of sledge(mm)

4500

Main winch pull(1st layer)

190

Main winch wire rope dia.(mm)

Φ26

Max. main winch line speed(m/min)

72

Aux. winch line pull(1st layer)(KN)

100

Aux. winch wire rope dia.(mm)

Φ18

Aux. winch line speed(m/min)

62

Overall width in drilling position(mm)

4300/20361

Overall L/H/W transport position(mm)

14559/3000/3507

Total weight (t)

60
