perfuratriz/ Rotary Drilling Rig/Pilote/piling machinery/bored pile /JVR300Z

perfuratriz/ Rotary Drilling Rig/Pilote/piling machinery/bored pile /JVR300Z

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 300 Units per Year
  • Port: shanghai or shenzhen
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2007-02-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  16900*3000*3500
  • Place of Origin:  CHINA
  • Brand Name:  CHTC JOVE
  • Model Number:  JVR 300Z
  • Weight: 85000.000 kg





Technical Specification

 Max. output torque(KN.m)

300

Max. drilling depth(m)

90

 Max. drilling diameter(mm)

2500

Engine brand

Cummins

Engine model

CumminsQSM11-C400

Engine power(KW)

298

undercarriage model

JVR300Z Self-made undercarriage

Traction force(KN)

549

Drilling speed(rpm)

6-24

Max. crowd push force(KN)

1585/200

Stroke of sledge(mm)

5500

Main winch pull(1st layer)

290

Main winch wire rope dia.(mm)

Φ36

Max. main winch line speed(m/min)

63.69

Aux. winch line pull(1st layer)(KN)

102.68

Aux. winch wire rope dia.(mm)

Φ20

Aux. winch line speed(m/min)

68.71

Overall width in drilling position(mm)

4500/23058

Overall L/H/W transport position(mm)

16900/3000/3500

Total weight (t)

85/90



  • Size:  16900*3000*3500
  • Place of Origin:  CHINA
  • Brand Name:  CHTC JOVE
  • Model Number:  JVR 300Z
  • Weight: 85000.000 kg

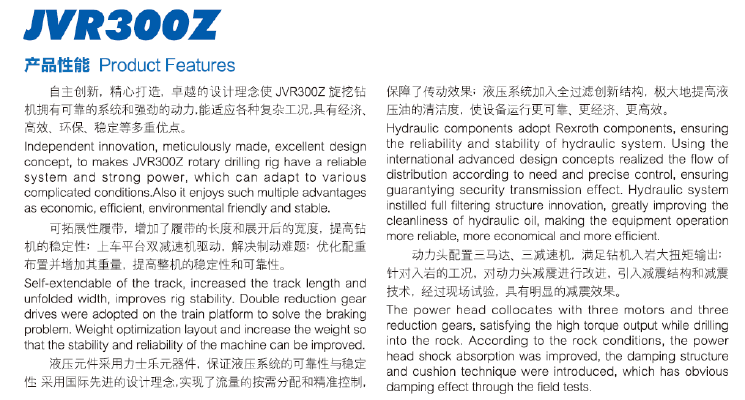

CHTC JOVE JVR series rotary drilling rig have excellent design concept, reliable system, strong power and self-extendable undercarriage which insure operation in complicated jobsites. Heavy hydraulic telescopic crawler is very stable and flexible, especially suitable for narrow jobsites. JVR series rotary drill rig enjoy economic, efficient, environment friendly, stable performance and other features





Technical Specification

 Max. output torque(KN.m)

300

Max. drilling depth(m)

90

 Max. drilling diameter(mm)

2500

Engine brand

Cummins

Engine model

CumminsQSM11-C400

Engine power(KW)

298

undercarriage model

JVR300Z Self-made undercarriage

Traction force(KN)

549

Drilling speed(rpm)

6-24

Max. crowd push force(KN)

1585/200

Stroke of sledge(mm)

5500

Main winch pull(1st layer)

290

Main winch wire rope dia.(mm)

Φ36

Max. main winch line speed(m/min)

63.69

Aux. winch line pull(1st layer)(KN)

102.68

Aux. winch wire rope dia.(mm)

Φ20

Aux. winch line speed(m/min)

68.71

Overall width in drilling position(mm)

4500/23058

Overall L/H/W transport position(mm)

16900/3000/3500

Total weight (t)

85/90
