Product Details
- Size: 18930*3900*3556
- Place of Origin: CHINA
- Brand Name: CHTC JOVE
- Model Number: JVR 400D
- Weight: 132000.000 kg
| Model | JVR400D Rotary Drill Rig |
|---|---|
| Max. output torque(KN.m) | 400 |
| Max. drilling depth(m) | 106 |
| Max. drilling diameter(mm) | 3000 |
| Engine brand | CAT |
| Engine model | C-15EFI |
| Engine power(KW) | 383 |
| Undercarriage model | CAT374D |
| Traction force(KN) | 896 |
| Drilling speed(rpm) | 6/22 |
| Max. crowd push force(KN) | 440/440 |
| Stroke of sledge(mm) | 14000 |
| Main winch pull(1st layer) | 350 |
| Main winch wire rope dia.(mm) | Φ40 |
| Max. main winch line speed(m/min) | 66 |
| Aux. winch line pull(1st layer)(KN) | 120 |
| Aux. winch wire rope dia.(mm) | Φ20 |
| Aux. winch line speed(m/min) | 75 |
| Overall width in drilling position(mm) | 5500/27638 |
| Overall L/H/W transport position(mm) | 19500/3900/4100 |
| Total weight (t) | 132 |
- Size: 18930*3900*3556
- Place of Origin: CHINA
- Brand Name: CHTC JOVE
- Model Number: JVR 400D
- Weight: 132000.000 kg

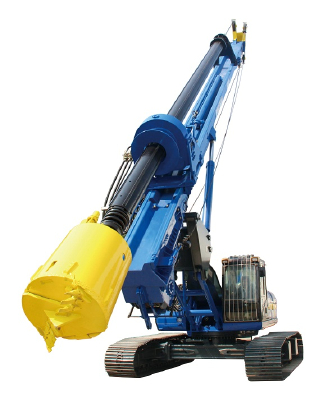

CHTC JOVE JVR series rotary drilling rig have excellent design concept, reliable system, strong power and self-extendable undercarriage which insure operation in complicated jobsites. Heavy hydraulic telescopic crawler is very stable and flexible, especially suitable for narrow jobsites. JVR series rotary drill rig enjoy economic, efficient, environment friendly, stable performance and other features
| Model | JVR400D Rotary Drill Rig |
|---|---|
| Max. output torque(KN.m) | 400 |
| Max. drilling depth(m) | 106 |
| Max. drilling diameter(mm) | 3000 |
| Engine brand | CAT |
| Engine model | C-15EFI |
| Engine power(KW) | 383 |
| Undercarriage model | CAT374D |
| Traction force(KN) | 896 |
| Drilling speed(rpm) | 6/22 |
| Max. crowd push force(KN) | 440/440 |
| Stroke of sledge(mm) | 14000 |
| Main winch pull(1st layer) | 350 |
| Main winch wire rope dia.(mm) | Φ40 |
| Max. main winch line speed(m/min) | 66 |
| Aux. winch line pull(1st layer)(KN) | 120 |
| Aux. winch wire rope dia.(mm) | Φ20 |
| Aux. winch line speed(m/min) | 75 |
| Overall width in drilling position(mm) | 5500/27638 |
| Overall L/H/W transport position(mm) | 19500/3900/4100 |
| Total weight (t) | 132 |
